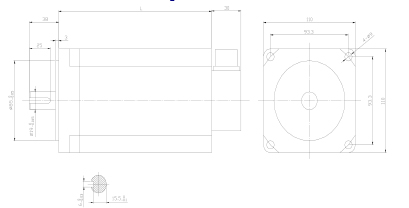

Model : NEMA42 Stepper motor SM110H3P(1.2degree)

General Specification :

Step Accuracy ------------------------------ ±5%

Resistance Accuracy ----------------------- ±10%

Inductance Accuracy ---------------------- ±20%

Temperature Rise -------------------------- 80°C MAX.

Ambient Temperature Range ------------- -20°C~ +50°C

Storage Temperature Range ------------- -30°C~ +60°C

Insulation Resistance ---------------------- 100M Ω MIN. 500V DC

Dielectric Strength ------------------------- 1800VAC for 1S 5mA

Radial Play --------------------------------- 0.02mm MAX. (450g Load)

End Play ------------------------------------ 0.08mm MAX. (450g Load)

Max. radial force --------------------------- 220N

Max. axial force ---------------------------- 60N
