Here is an example to explain the precision of BD board.

Example: AD channel precision is 14-bit, analog input range is 0-5V or 0-10V. The transformed digital range is 0~16383.

If the analog range is 0~5V, when the input voltage is 0V, the digital value is 0V, when the input voltage is 5V, the digital value is 16383. If the analog range is 0~10V, when the input voltage is 0V, the digital value is 0V, when the input voltage is 10V, the digital value is 16383. This is the relationship between input signal and transformed digital value.

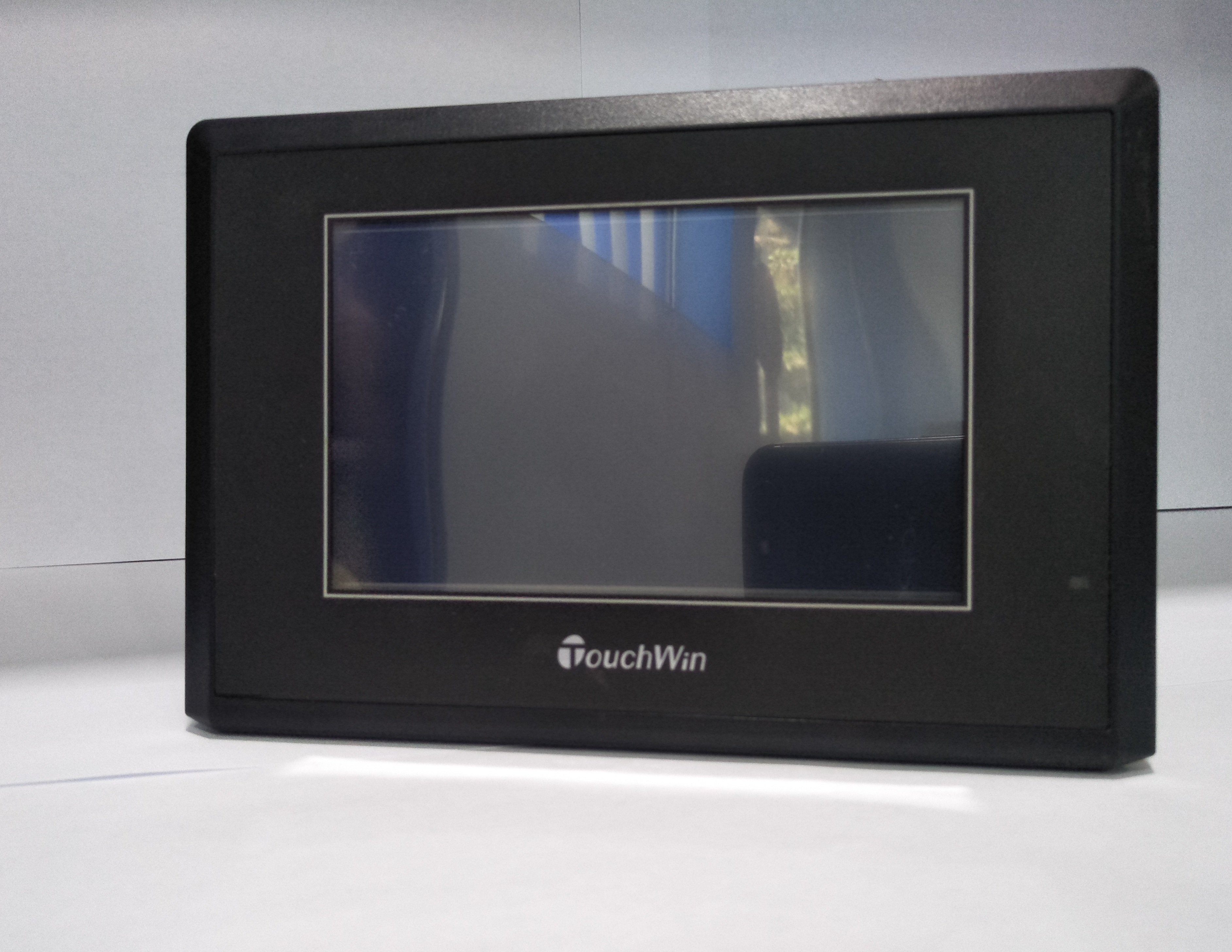

For example, the pressure sensor signal is 0-10V, the sensor range is 0-15Mpa, the present pressure value will be shown on the HMI screen.
